The Flood-Rite BL/BED Stationary Doorway Barrier System range provides permanently installed, manually operated flood and spill barriers for single or double-sided raising applications. These systems are ideal for locations requiring a fixed barrier solution that can be raised or lowered as needed — from standard doorways to very wide industrial openings up to 15 metres.
Models Available
| Model | Art. No. | Height | Max Length | Key Feature |
|---|---|---|---|---|
| BL/BED | 031 | 100–1000 mm | 6000 mm | Single-side raising, modular |

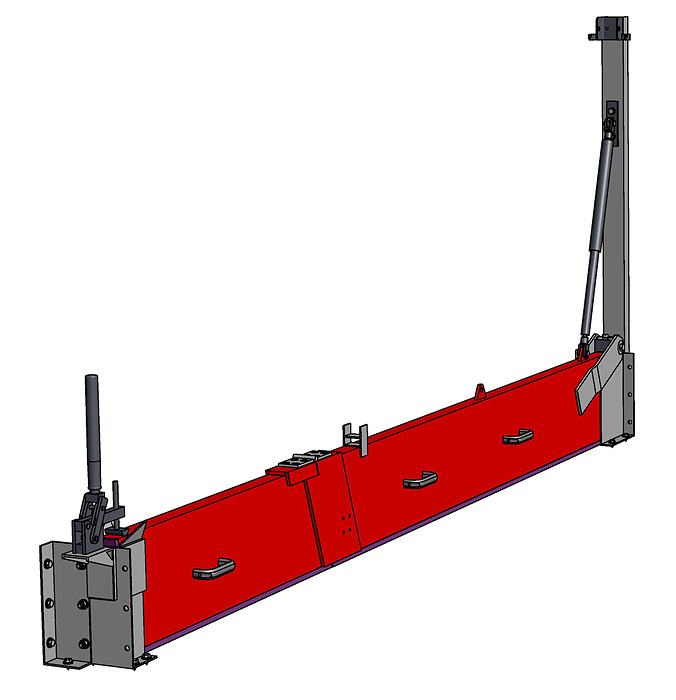

| BL/BED-KB | 032 | 100–500 mm | 8000 mm | Single-side with folding capability |

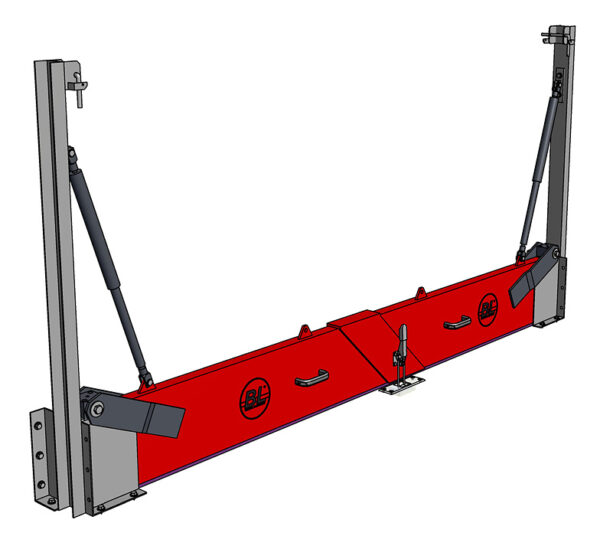

| BL/BDD | 033 | 100–500 mm | 10000 mm | Double-side raising, low-ceiling design |
| BL/BDD-KB | 034 | 100–500 mm | 15000 mm | Double-side raising with fold, up to 15m |

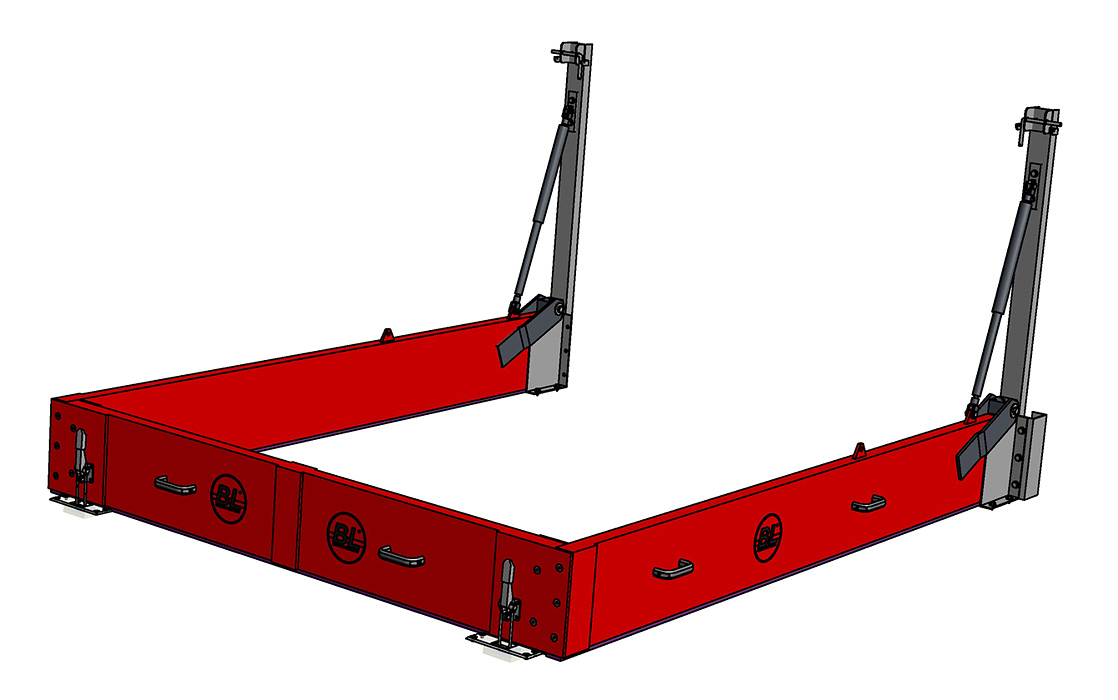

| BL/BDD-U | 035 | 100–500 mm | 10000 mm | U-shaped, special loading dock design |

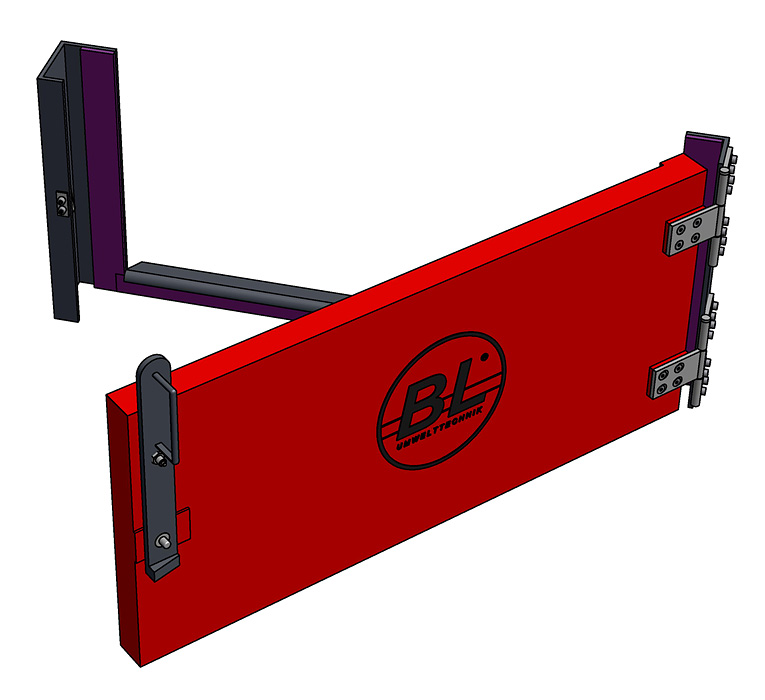

| BL/BHS-M | 036 | 300–1000 mm | 5000 mm | Horizontally swivelling, manual |
Key Features
- Single or double-sided raising capability
- Folding options for low-ceiling or space-restricted installations
- U-shaped configuration for loading dock perimeter protection
- Horizontal swivel variant for angled installations
- Standard body width: 50mm
- Extremely wide spans available — up to 15 metres
- Modular construction for custom configurations
Contact us to discuss the right configuration for your facility.
