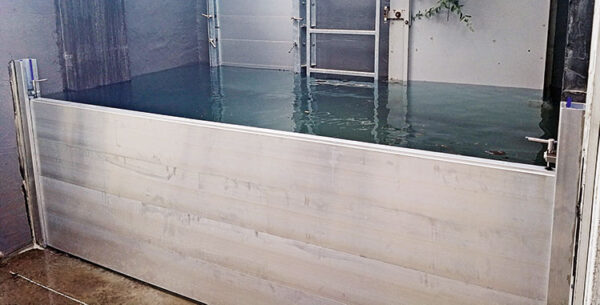

The Flood-Rite GSB-H Modular Flood Barrier System is a highly flexible, scalable flood protection solution built around lightweight aluminium profiles that slot between vertical U-posts. Profiles are added one by one as water levels rise — or pre-installed for anticipated flood events — providing adaptable defence that grows with the water level.
Key Features
- Lightweight aluminium profiles for ease of handling
- Profiles slot between vertical U-posts — no tools required
- U-post height can be extended after installation to increase capacity up to 2 metres

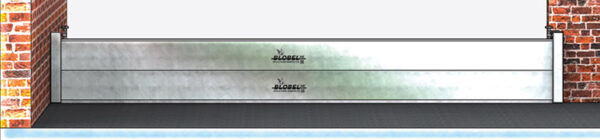

- Wide span capability — up to 5 metres wide per section
- Available with permanently mounted or mobile U-posts on recessed base plates
- High-grade aluminium construction for durability and corrosion resistance

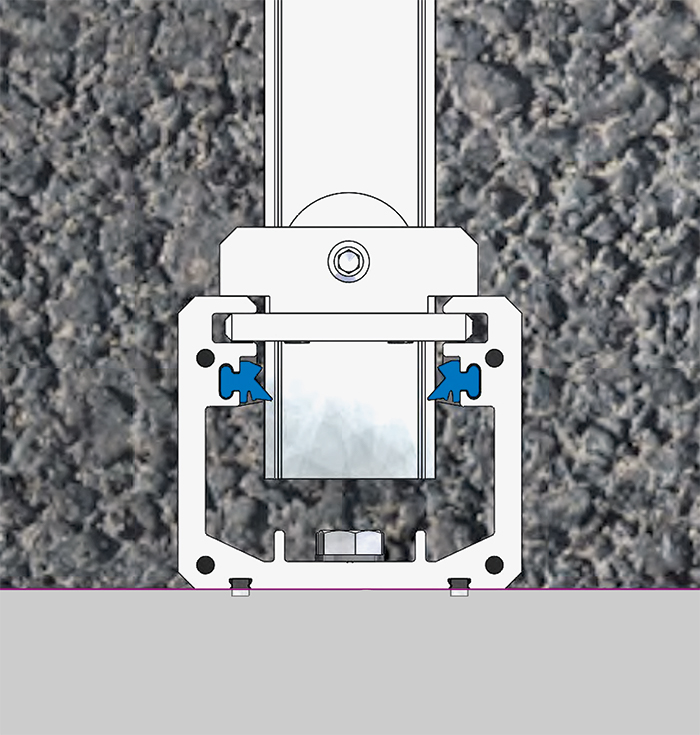

- Temperature, UV, and ozone resistant seals
Technical Specifications
| Barrier Height | Max Span Width | No. of Profiles |
|---|---|---|
| 250 mm | 4,950 mm | 1 |
| 500 mm | 3,900 mm | 2 |
| 1,000 mm | 3,100 mm | 4 |
| 2,000 mm | 2,430 mm | 8 |
Installation Options
- In front of opening — bolted to wall face
- Within opening recess
- Permanently mounted U-posts
- Mobile U-posts on recessed steel or aluminium base plates
Contact us for a site survey and tailored flood barrier design.
