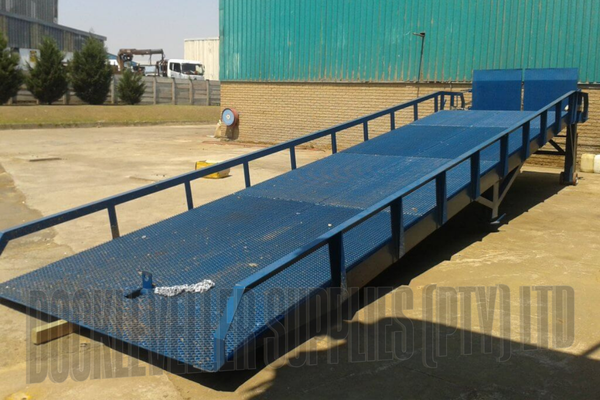

The Mobile Yard Ramp is designed for operations that do not have a fixed loading dock and require a flexible, movable solution for loading and offloading vehicles. This unit allows a forklift to enter the back of the vehicle quickly and safely, avoiding the cost of raising warehouse floors or constructing permanent dock infrastructure. Because it is not attached to the building, it is particularly valuable for rented premises and can be moved between sites when needed.

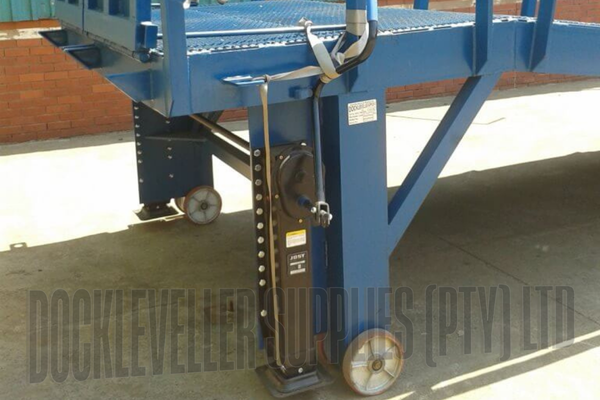

The ramp features fully adjustable telescopic legs to match the height of different vehicles. Two independent hinged lips connect the ramp to the back of the truck, absorbing the vehicle’s natural movement during loading. The ramp can also be supplied with a dockleveller built into the top section if required.
The latest design includes a 10 mm solid deck plate supported by the main superstructure, with a non skid expanded metal surface. This provides far greater strength and traction than older grating based decks, eliminates rutting, and offers improved grip in wet conditions. The unit remains simple to operate, easy to move and requires minimal maintenance.
Specifications for Local Ramp
• Capacity 10000 kg to 15000 kg
• Length 11000 mm
• Working width 2450 mm
• Height 1500 mm
• Deck Flat plate with non skid expanded metal surface
• Working range 1300 mm to 1950 mm
• Lip adjustment range 100 mm up and 100 mm down
• Approximate weight 5000 kg
• Telescopic truck trailer legs for height adjustment
• Reinforced two piece lip system
Specifications for Export Ramp
• Capacity 10000 kg to 15000 kg
• Length 11000 mm
• Working width 2000 mm
• Height 1500 mm
• Deck Flat plate with non skid expanded metal surface
• Working range 1300 mm to 1950 mm
• Lip adjustment range 100 mm up and 100 mm down
• Approximate weight 5000 kg
• Designed to fit into a 20 ft container for export
Features
• Mobile solution for sites without fixed loading docks
• Allows forklifts to enter vehicles quickly for efficient loading and offloading
• No civil works required and no loss of investment when moving premises
• Forklift movable for repositioning or storage
• Adjustable telescopic legs to match different vehicle heights
• Two hinged lips absorb vehicle movement and maintain secure bridging
• Optional built in dockleveller available
• Strong 10 mm flat plate deck with expanded metal top for traction
• Minimal moving parts for low maintenance
• Suitable for indoor or outdoor use on flat surfaces
Applications
• Sites without permanent loading docks
• Rented facilities requiring non permanent equipment
• Warehouses, logistics hubs and transport yards
• Container receiving and dispatch operations
• Multi vehicle loading environments
