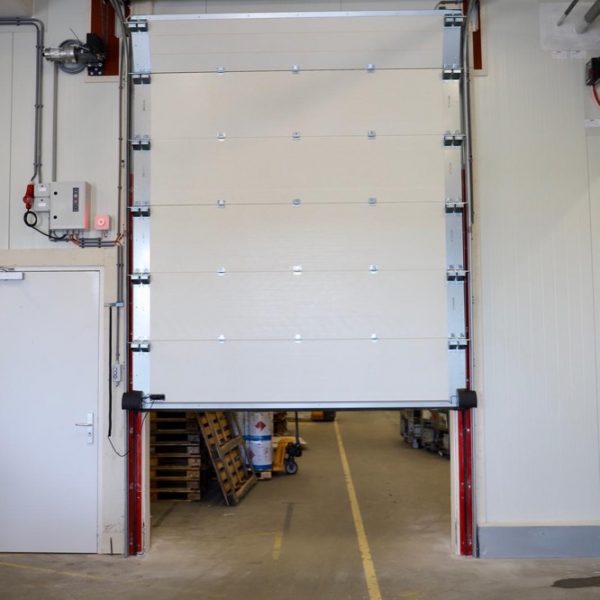

OHD-C Fire Rated Sectional Door — EI(1) 60 / EI(2) 90 / EW 90
The Metacon OHD-C EI(1) 60 / EI(2) 90 / EW 90 is a certified fire-rated sectional overhead door designed for regular operational use in industrial, commercial and logistics environments where fire compartmentalisation is required alongside efficient access.
Constructed from 42 mm fire-resistant composite panels (classified B-s1, d0 per EN 13501-1), the door achieves an EI(1) 60-minute, EI(2) 90-minute or EW 90-minute fire resistance rating across openings up to 23.5 m². Standard drive is a gravity failsafe chain wheel system at 400 V, with an optional external tubular motor at 230 V for openings up to approximately 13 m².
Suitable for indoor-to-indoor and indoor-to-outdoor applications, the door can be used on protected escape routes (not as a primary escape route itself). It is mountable on a wide range of structural surfaces including aerated concrete, sand-lime brick, concrete, masonry and fire-resistant steel construction.
Optional upgrades include wind class 5 resistance, smoke resistance (Sa or S200), burglar resistance (RC 2 or RC 3), and sound insulation up to 32 dB. Fully CE marked in accordance with EN 13241 and EN 16034.
