Sprint High Speed Doors

High speed sectional door combining the opening speed of a fabric door (up to 1,000 mm/s) with the security of a sectional overhead system. Available in steel S40 and aluminium A40 versions.

Need a Quote or Door Advice?

Our Door-Rite specialists can assist with door selection, sizing, installation planning, and compliance requirements across South Africa and Africa.

Speak to an Engineer →

Sprint High Speed Sectional Doors combine the speed of a high speed fabric door with the durability and stability of a sectional overhead door system. Designed to minimise the time the opening is exposed, the Sprint reduces heat loss and improves energy efficiency in busy industrial and commercial environments.

This system is ideal for external wall installations where a traditional overhead door may be too slow or where a high speed door may not provide adequate security. The Sprint range includes two types: the S40 Sprint manufactured from steel sandwich panels, and the A40 Sprint manufactured from aluminium sections.

SpecificationDetail
Versions AvailableS40 Sprint (steel) and A40 Sprint (aluminium)
Panel Thickness40 mm
Maximum Section Height370 mm
Opening SpeedUp to 1,000 mm/s

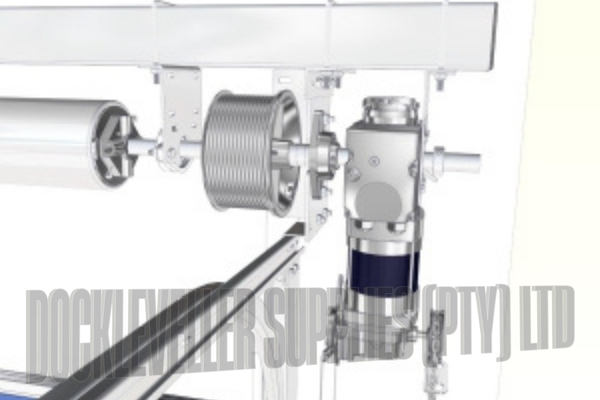

DriveFrequency controlled with soft start and soft stop
Spring Cycles (standard)50,000
RollersDouble tandem for smoother operation

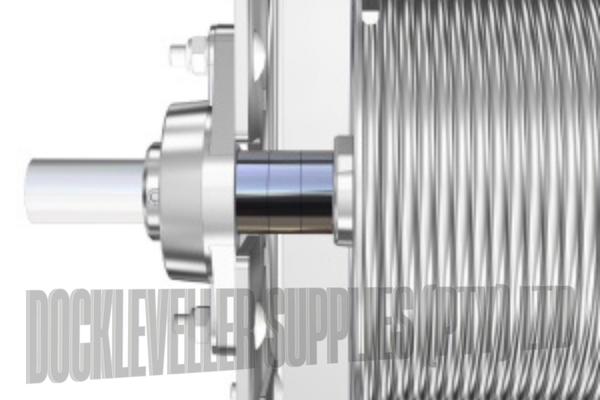

ShaftSolid 1¼ inch
Guide SystemsNormal lift, high lift or vertical lift
Filling OptionsPanels or acrylic glazing depending on version
Colour OptionsSteel: RAL 9002 or any RAL; aluminium: anodised or RAL coated
ApplicationSuitable for interior or exterior use
