Temperature Controlled Doors

Insulated door range for cold rooms, freezer storage and ripening facilities. Includes Iso Roll flexible curtain doors and Iso Therm rigid sectional options, both designed for tight thermal separation.

Need a Quote or Door Advice?

Our Door-Rite specialists can assist with door selection, sizing, installation planning, and compliance requirements across South Africa and Africa.

Speak to an Engineer →

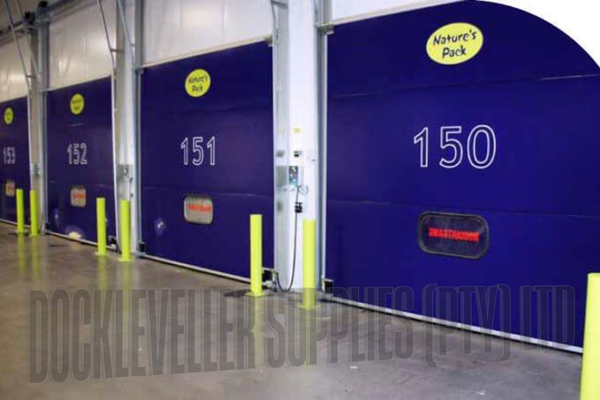

Temperature Controlled Doors provide reliable thermal separation for cold rooms, chilled zones, ripening facilities and internal temperature controlled partitions. These doors are engineered to maintain stable environmental conditions, minimise condensation and reduce energy loss across a wide range of industrial and commercial applications.

The range includes two specialised models: Iso Roll Doors which use a flexible insulated curtain system for internal zones with high temperature differences, and Iso Therm Doors which are rigid insulated sectional doors designed for deep freeze and temperature-sensitive storage environments.

General

  • Designed for temperature-controlled environments
  • Suitable for chilled and frozen storage areas
  • High performance insulation
  • Tight perimeter sealing
  • Electrical operation available
  • Compatible with temperature management systems

Iso Roll Doors

  • Door leaf construction: multi-layer PVC and Trevira fabric
  • Insulation core: polyether 46/120
  • Outside layer thickness: 2 mm; inside layer: 0.5 mm
  • Interlinked curtain panels 2,000 mm wide, expandable to unlimited width
  • Opening and closing speed: approximately 0.10 m/s
  • Temperature range: −35°C to +80°C
  • Available thickness: 40 mm, 60 mm, 80 mm
  • Electric direct drive operation
  • Control: open / stop / close with continuous-press safety during closing
  • Thermally interrupted profiles

Iso Therm Doors

  • Door type: rigid insulated sectional door
  • Door thickness: 80 mm
  • Insulation core: CFC-free polyurethane foam
  • Interior and exterior sheet: 0.5 mm galvanised steel with polyester coating
  • Thermal-bridge-interrupted bottom and top profiles
  • PVC capping to minimise condensation
  • Standard finish: Grey White RAL 9002
  • Pass door options: lowered threshold 40 mm or escape threshold 20 mm
  • Electric motor: 400 V, 50 Hz with optical sensor and slack cable safety
  • Glazing options: milled acrylic or full glass quadruple acrylic sections
  • Insulation value (4,000 × 4,000 mm door): 0.5 W/m²K
